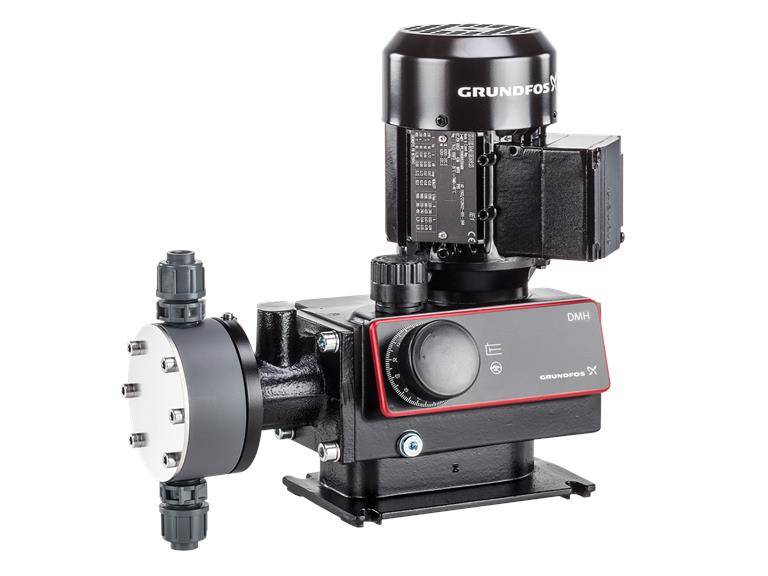

Image for illustration purposes only.
Grundfos DMH 24-10 B-PV/T/C-X-E1U2U2XEMAG Piston Diaphragm
Part number
99587790
- Part number
- 99587790
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713831498643
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Piston diaphragm pumps with external motor or hydraulic drive. The DMH series pump is a versatile positive displacement diaphragm metering pump. The diaphragm is hydraulically coupled to a high efficiency AC motor via a precision gear eccentric tapet system. The metering capacity is adjusted by varying the stroke length on the stroke adjustment knob in a ratio of 1 to 10. The series is extremely versatile, covering a wide flow rate range and offering a variety of dispensing head sizes, materials
Technical data
| Part number | 99587790 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713831498643 |
| Max. Max. flow rate (l/h) | 24 |
| Max. operating pressure (bar) | 10 Operating pressure (bar): 10 |
| Pump housing | Aluminium |
| Material dosing head | Plastic |
| Valve ball | Ceramic |
| Medium temperature range | -10 ... 60 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
