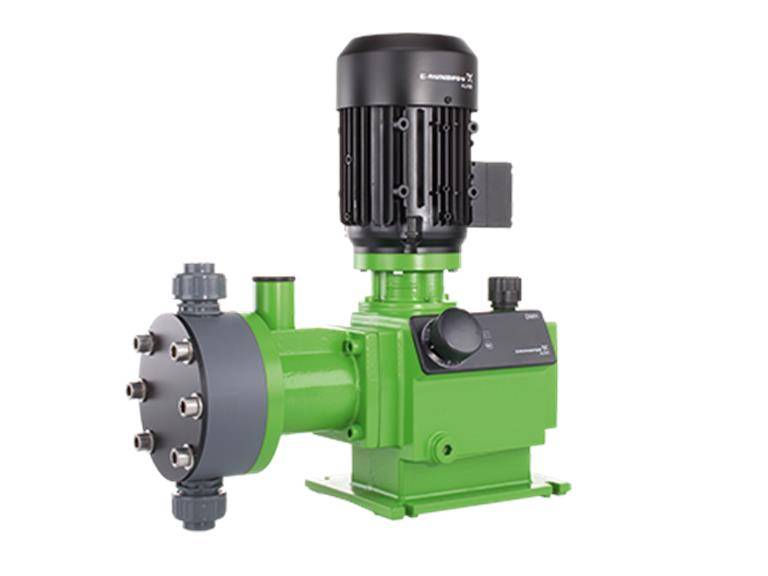

Image for illustration purposes only.
Grundfos DMH 332-10 B-PVC/V/C-X-E1U3U3XEMAG piston Diaphragm
Part number
99587828
- Part number
- 99587828
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713831499404
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Piston diaphragm pumps with external motor or hydraulic drive. The DMH series pump is a versatile positive displacement diaphragm metering pump. The diaphragm is hydraulically coupled to a high efficiency AC motor via a precision gear eccentric tapet system. The metering capacity is adjusted by varying the stroke length on the stroke adjustment knob in a ratio of 1 to 10. The series is extremely versatile, covering a wide flow rate range and offering a variety of dispensing head sizes, materials
Technical data
| Part number | 99587828 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713831499404 |
| Max. Flow rate (l/h) | 332 |
| Max. Operating pressure (bar) | 10 |
| Pump housing | Aluminium |
| Dosing head material | Plastic |
| Valve ball | Ceramic |
| Media temperature range | 0 ... 40 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
