Image for illustration purposes only.
Grundfos DDA 30-4 AR-PV/T/C-F-31U2U2IG SMART Digital Diaphragm metering pump
Part number
97723100
- Part number
- 97723100
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710622732931
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description

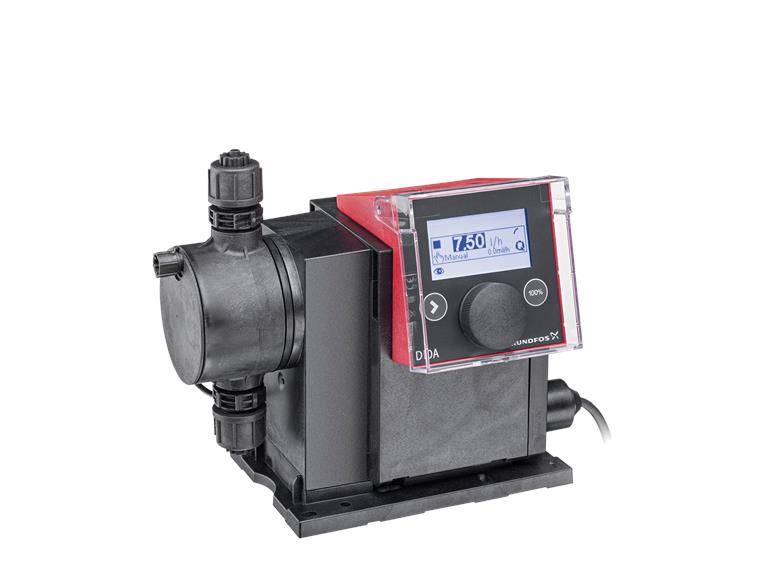

SMART Digital diaphragm metering pump with stepper motor drive for low-pulsation and continuous metering. Ideal for complex dosing tasks thanks to integrated dosing monitoring and volume flow measurement. The SMART Digital DDA is a compact diaphragm metering pump with speed-controlled stepper motor drive and intelligent control electronics. Thanks to the stepper motor, SmartDigital dosing pumps always work with the full stroke length for optimum dosing accuracy. The stepper motor drive enables l
Technical data
| Part number | 97723100 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710622732931 |
| Max. Volume flow (l/h) | 30 |
| Max. Operating pressure (bar) | 4 |
| Material dosing head | PVDF (polyvinylidene fluoride) |
| Valve ball | Ceramic |
| Media temperature range | -10 ... 45 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
