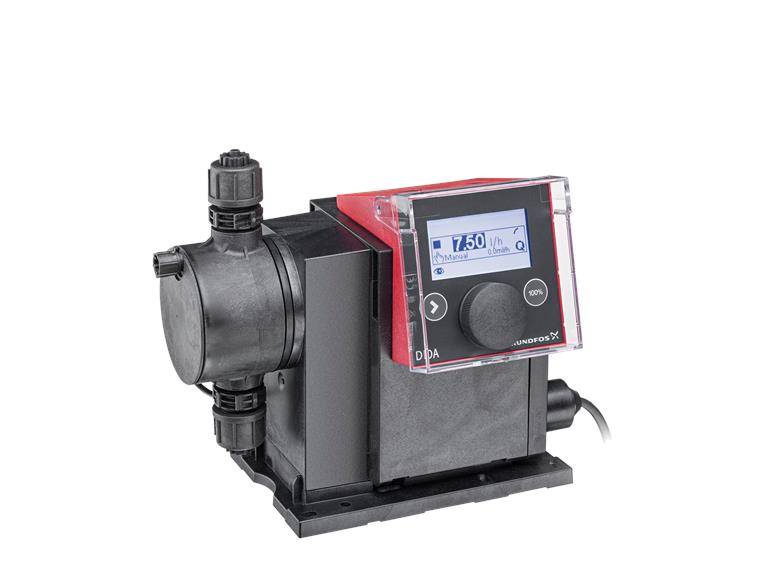

Image for illustration purposes only.
Grundfos DDA 30-4 AR-PV/T/C-F-32U2FG Metering pump
Part number
97722274
- Part number
- 97722274
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710622724172
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
The SMART Digital DDA is a compact diaphragm metering pump with speed-controlled stepper motor drive and intelligent control electronics. Thanks to the stepper motor, SmartDigital dosing pumps always work with the full stroke length for optimum dosing accuracy. The stepper motor drive enables low-pulsation and continuous dosing, even at low dosing volume flows. The flexible mounting plate allows wall and floor mounting without additional mounting accessories. The operating cube can be rotated in
Technical data
| Part number | 97722274 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710622724172 |
| Dosing head | PVDF |
| Seal | PTFE |
| Valve ball | ceramic |
| Max. flow rate | 30 l/h |
| Media temperature range | -10..45 °C Max. flow rate: 30 l/h |
| Media temperature range | -10..45 °C |
| Rated voltage | 1 x 100-240 V |
| Type of protection | IP65 / NEMA 4X |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
