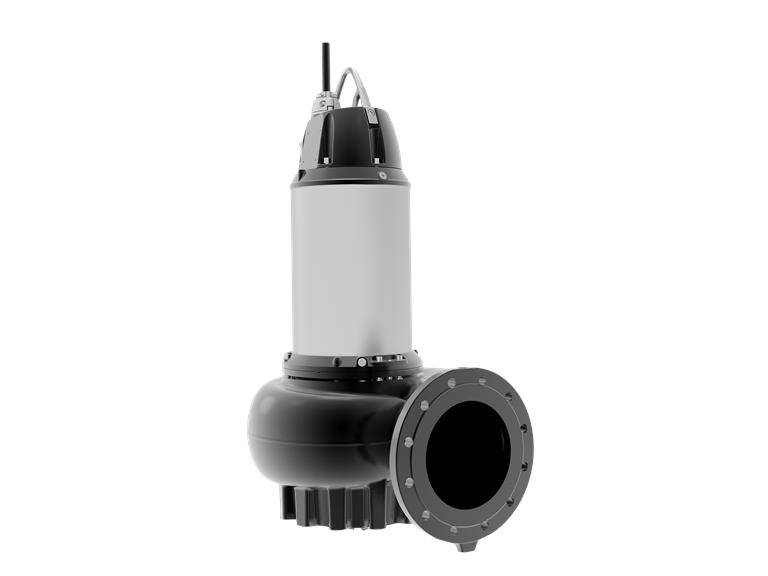

Image for illustration purposes only.
Grundfos SE1.110.200.110.4.52M.C.N.51D.A Submersible pump
Part number
99776474
- Part number
- 99776474
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713834112416
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Submersible pumps and dry-installed Grundfos SE/SL wastewater pumps (9-30 kW) are equipped with either: S-tube? (SE/SE1/SE2 and SL/SL1/SL2) or SuperVortex impeller (SLV). The free passage through the pump varies from 35-125 mm depending on the size and impeller variant. Non-self-priming, single-stage submersible pump for pumping wastewater, service water and untreated raw sewage. The pump is suitable for both intermittent and continuous operation. With cooling jacket, so that in addition to wet
Technical data
| Part number | 99776474 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713834112416 |
| Max. delivery head | 15 m |
| Max. operating pressure | 8 bar |
| Media temperature range | 0 ... 40 °C Max. operating pressure: 8 bar |
| Media temperature range | 0 ... 40 °C |
| Starting current | 210/116 % |
| Rated speed | 1481 1/min |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
