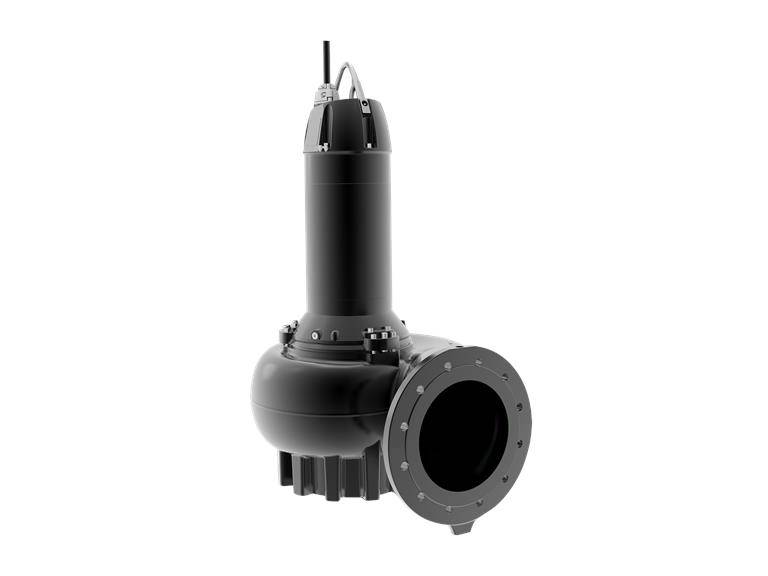

Image for illustration purposes only.
Grundfos SL1.85.150.185.4.52H.S.N.51D.A Submersible pump
Part number
99776330
- Part number
- 99776330
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713834109737
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Submersible pumps and dry-installed Grundfos SE/SL wastewater pumps (9-30 kW) are equipped with either: S-tube? (SE/SE1/SE2 and SL/SL1/SL2) or SuperVortex impeller (SLV). The free passage through the pump varies from 35-125 mm depending on the size and impeller variant. Non-self-priming, single-stage submersible pump for pumping wastewater, service water and untreated raw sewage. The pump is designed for wet installation in intermittent or continuous operation. With S-tube? impeller with a free
Technical data
| Part number | 99776330 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713834109737 |
| Maximum head | 26 m |
| Maximum flow | 83.1 l/s |
| Max. operating pressure | 8 bar |
| Rated speed | 1479 rpm Operating pressure: 8 bar |
| Rated current | 41-37/24-23 A |
| Rated speed | 1479 1/min |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
