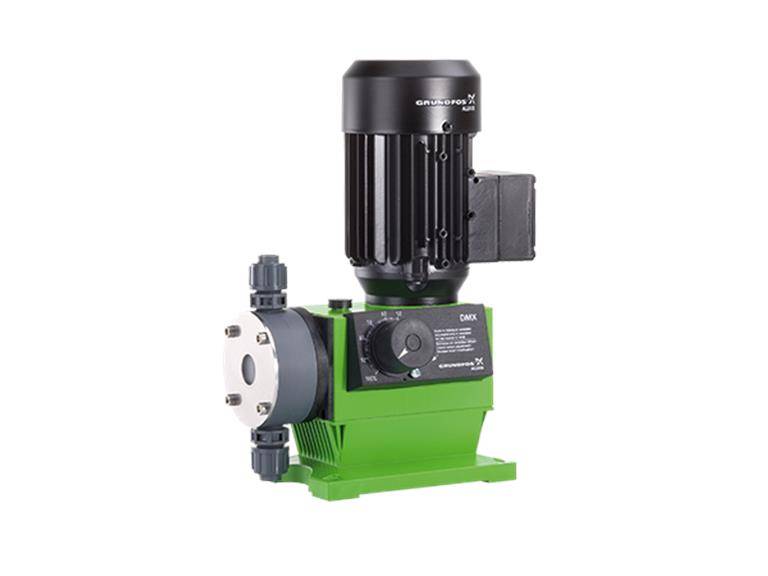

Grundfos DMX 132-10 B-SS/T/SS-X-E1A1A1XEMAG Diaphragm metering pump
Part number
99773473
- Part number
- 99773473
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713834067402
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Diaphragm metering pumps with external asynchronous motor. The pump from the DMX series is a versatile diaphragm metering pump designed as a positive displacement pump. The diaphragm is mechanically connected to the highly efficient AC motor via a high-precision eccentric tappet gear. The dosing quantity is adjusted by changing the stroke length, which can be set at a ratio of 1:10 on the stroke length adjustment knob.
Technical data
| Part number | 99773473 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713834067402 |
| Max. Max. flow rate (l/h) | 132 |
| Max. operating pressure (bar) | 10 Operating pressure (bar): 10 |
| Pump housing | Aluminium |
| Material dosing head | Stainless steel |
| Valve ball | Stainless steel |
| Media temperature range | -10 ... 70 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
