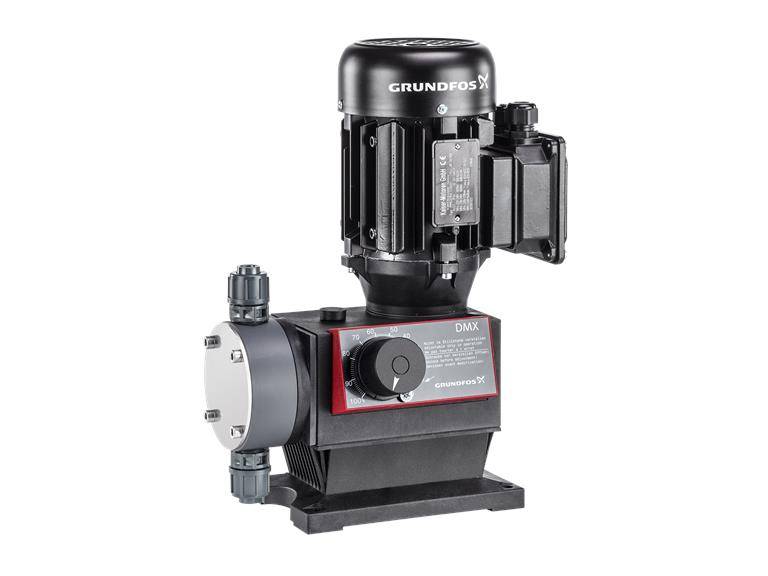

Grundfos DMX 17-4 B-PVC/V/C-X-E1U3U3XEMNG Diaphragm metering pump
Part number
99772016
- Part number
- 99772016
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713834038181
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Diaphragm metering pumps with external asynchronous motor. The DMX221 pump of the DMX series is a versatile diaphragm metering pump designed as a positive displacement pump. The diaphragm is mechanically connected to the highly efficient AC motor via a high-precision eccentric tappet gear. The dosing quantity is adjusted by changing the stroke length, which can be set at a ratio of 1:10 on the stroke length adjustment knob.
Technical data
| Part number | 99772016 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713834038181 |
| Max. Flow rate (l/h) | 17 |
| Max. Operating pressure (bar) | 4 |
| Pump housing | Thermoplastic |
| Material dosing head | Plastic |
| Valve ball | Ceramic |
| Media temperature range | 0 ... 40 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
