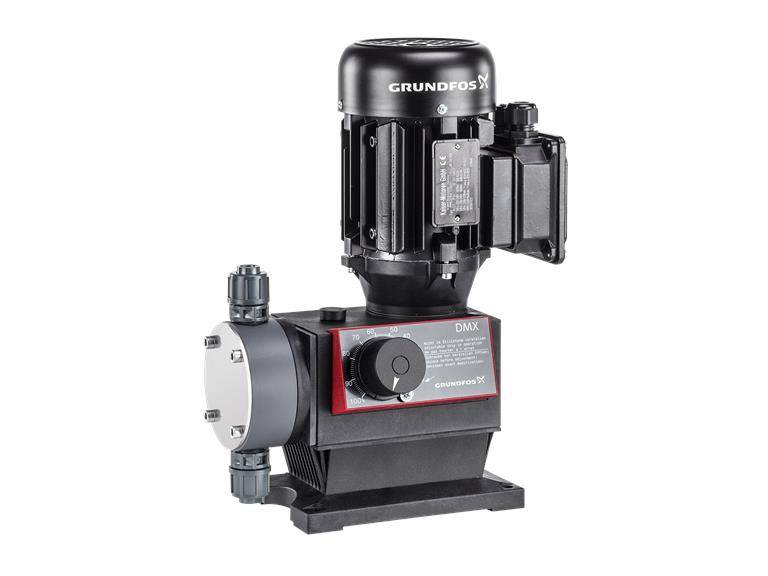

Image for illustration purposes only.
Grundfos DMX 115-3 B-PP/T/T-X-G1U3U3FEMNG Diaphragm metering pump
Part number
99772000
- Part number
- 99772000
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713834037863
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Diaphragm metering pumps with external asynchronous motor. The DMX221 pump of the DMX series is a versatile diaphragm metering pump designed as a positive displacement pump. The diaphragm is mechanically connected to the highly efficient AC motor via a high-precision eccentric tappet gear. The dosing quantity is adjusted by changing the stroke length, which can be set at a ratio of 1:10 on the stroke length adjustment knob.
Technical data
| Part number | 99772000 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713834037863 |
| Max. Max. flow rate (l/h) | 115 |
| Max. operating pressure (bar) | 3 Operating pressure (bar): 3 |
| Pump housing | Thermoplastic |
| Dosing head material | Plastic |
| Valve ball | Composite |
| Media temperature range | 0 ... 40 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
