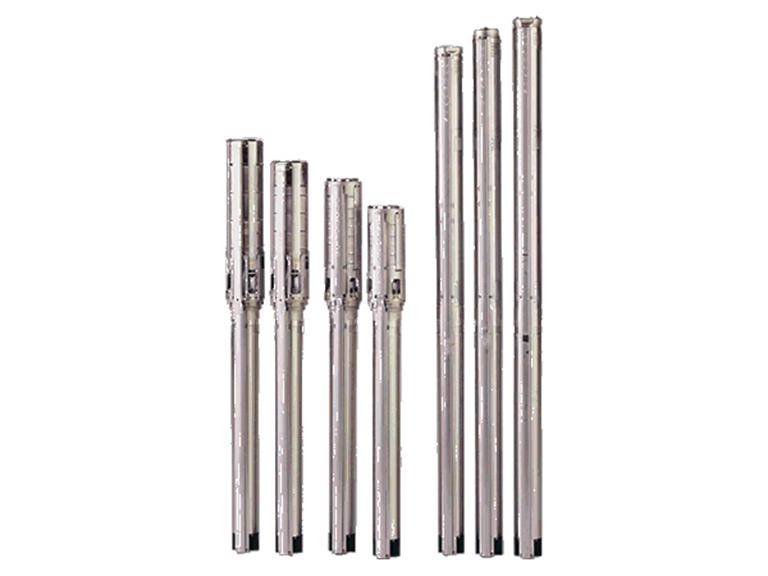

Image for illustration purposes only.
Grundfos SQF 7-55 Wind and solar powered submersible pump
Part number
99595409
- Part number
- 99595409
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713831625667
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Wind-powered and solar-powered submersible pumps with integrated inverter. The pumps can be operated with alternating and direct current and can also be fed from the mains. Submersible pump of the eccentric screw pump type made of chrome-nickel steel for horizontal/vertical installation. With built-in non-return valve. With permanent magnet motor, motor cable, dry-running sensor, overvoltage and undervoltage protection, overload protection, maximum power point tracking (MPPT).
Technical data
| Part number | 99595409 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713831625667 |
| Pump | Stainless steel |
| Minimum well diameter | 76 mm |
| Rated current | 12.5 A |
| Max. operating pressure | 15 bar |
| Media temperature range | 0 ... 40 °C |
| Motor efficiency at full load | 0.67 Operating pressure: 15 bar |
| Media temperature range | 0 ... 40 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
