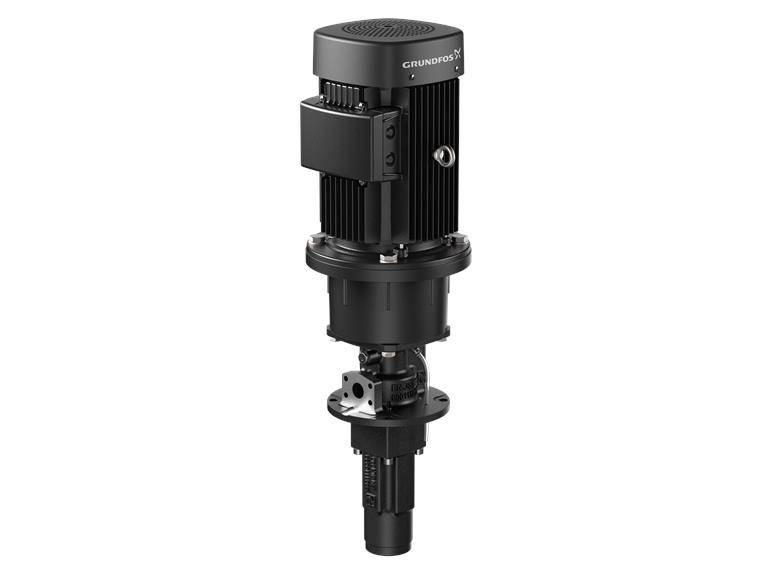

Image for illustration purposes only.
Grundfos MTS 20-80 R38 DQ screw pump
Part number
99473045
- Part number
- 99473045
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5713829687646
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Three-spindle, self-priming screw pump in flange design (DIN ISO 3019-2) with specially surface-hardened drive and running spindles. The barrel spindles are hydraulically driven and the axial thrust is fully hydrostatically balanced. With flange-mounted IEC motor, from 3.0 kW with PTC sensor according to DIN 44082. Power transmission via standard coupling. Type of installation: tank installation with arrangement of the discharge connection above the tank cover, pump submerged or dry installation
Technical data
| Part number | 99473045 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5713829687646 |
| EAN number | 5713829687646 |
| Nominal flow rate | 22.4 l/min |
| Maximum ambient temperature | 60 °C |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-415D V |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
