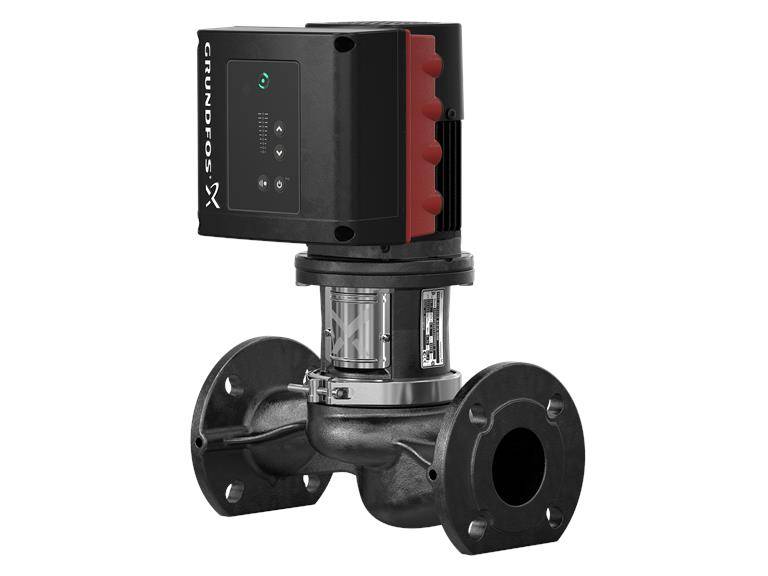

Image for illustration purposes only.
Grundfos TPE2 80-120 N-A-F-A-BQBE-GDB Single-stage double in-line pumps
Part number
99223471
- Part number
- 99223471
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5712608981005
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Single-stage spiral pump with opposite suction and discharge ports in inline design. The suction and discharge ports have the same diameter. The pumps are designed according to the top pull-out principle, i.e. the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump casing remains in the piping. The mechanical seal complies with EN 12756. Piping connection via DIN flanges PN 16 according to EN 1092-2 and ISO 7005-2. The pump is equipped wi
Technical data
| Part number | 99223471 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5712608981005 |
| Nominal flow rate | 41.9 m³/h |
| Nominal head | 7.2 m |
| Ambient temperature | -20 ... 50 °C |
| Max. Max. operating pressure | 16 bar |
| Rated current | 2.20-1.90 A |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
