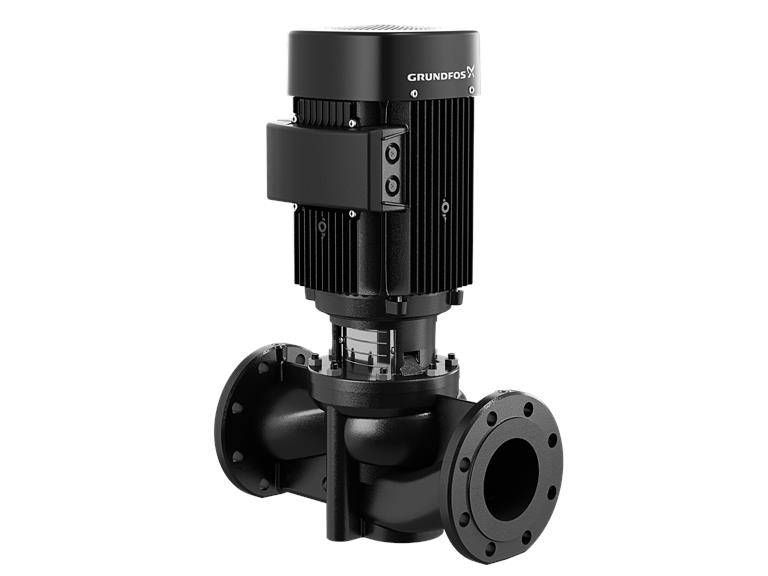

Image for illustration purposes only.
Grundfos TP 40-60/2 A-F-Z-BQBE-CX1 Single stage inline pumps
Part number
99222289
- Part number
- 99222289
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5712608958519
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Single stage spiral pump with opposite suction and discharge ports in inline design. The suction and discharge ports have the same diameter. The pumps are designed according to the top pull-out principle, i.e. the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump casing remains in the piping. The pump is equipped with an unbalanced rubber bellows seal. The mechanical seal complies with EN 12756.Piping connection via DIN flanges PN 6/10
Technical data
| Part number | 99222289 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5712608958519 |
| Nominal flow rate | 10.4 m³/h |
| Nominal head | 4.6 m |
| Ambient temperature | -30 ... 40 °C |
| Max. Max. operating pressure | 10 bar |
| Rated current | 2.05/2.00 A |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
