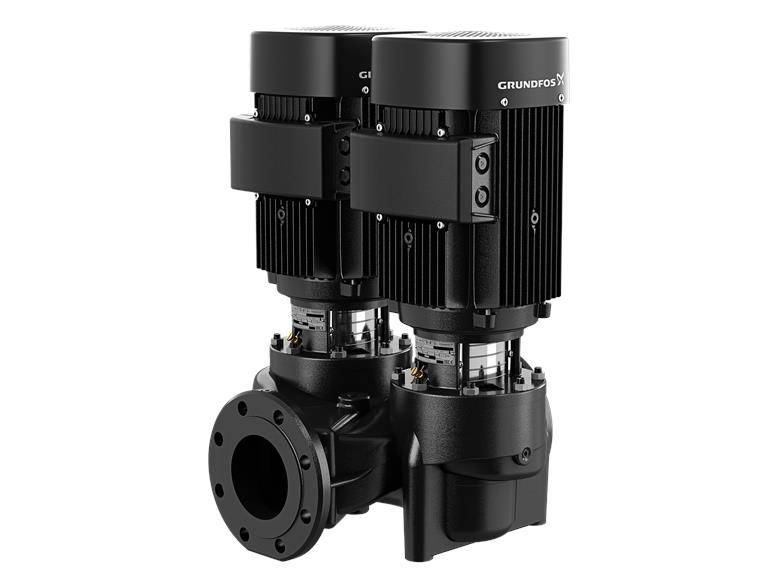

Grundfos TPD 50-60/4 A-F-A-BQBE-DX3 Single-stage inline pumps
Part number
99222004
- Part number
- 99222004
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5712608953095
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Single stage double pump with spiral pump casing in inline design. The suction and discharge ports have the same diameter. The pump and the motor are directly connected to each other. The double pump has two pump heads arranged in parallel. The pumps are designed according to the top-pull-out principle, i.e. the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump casing remains in the piping. Each pump head is equipped with an unbalanced
Technical data
| Part number | 99222004 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5712608953095 |
| Nominal flow rate | 17.1 m³/h |
| Nominal head | 4.18 m |
| Ambient temperature | -30 ... 40 °C |
| Max. Max. operating pressure | 10 bar |
| Rated current | 2.85 A |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
