Image for illustration purposes only.

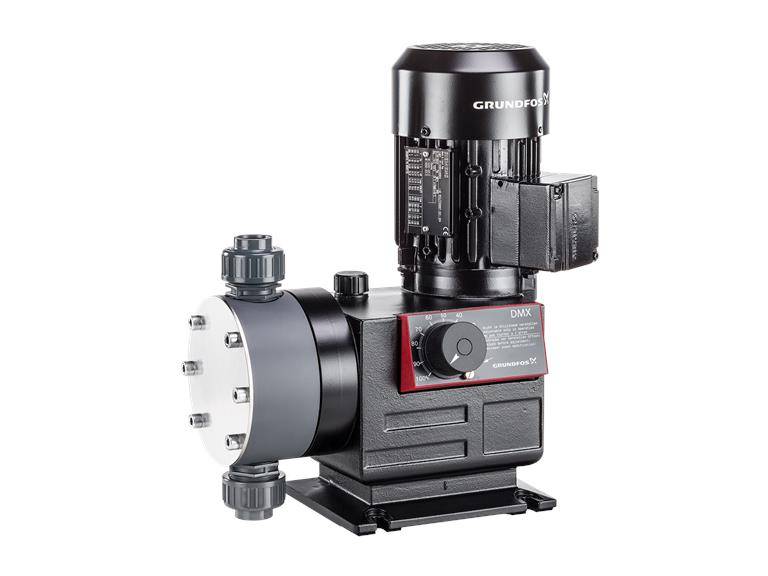

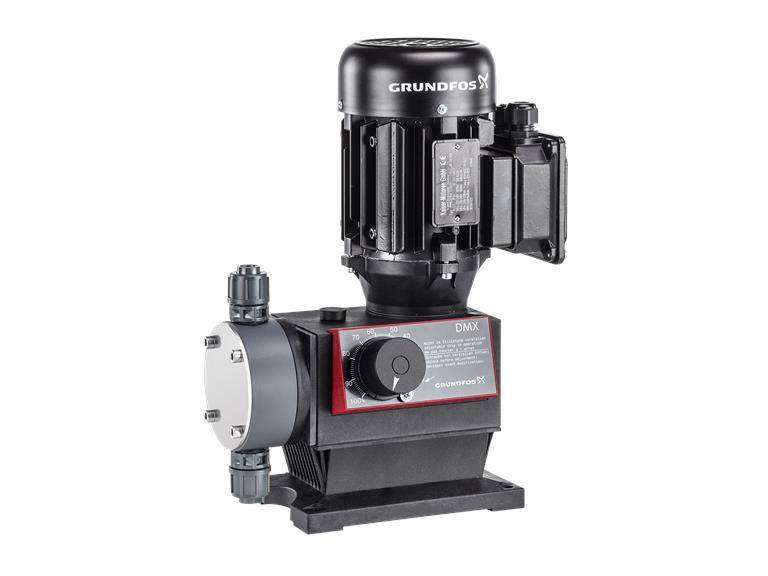

Grundfos DMX 27-12 B-PVC/V/C-X-E1U2XEMNG Diaphragm metering pumps
Part number
99205993
- Part number
- 99205993
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5712608670398
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
The DMX 221 "Selection" series is a robust and versatile motor-driven diaphragm metering pump for simple metering applications. The diaphragm is mechanically connected to the highly efficient electric motor via a high-precision eccentric tappet gear. The dosing quantity is adjusted by changing the stroke length, which can be set at a ratio of 1:10 on the stroke length adjustment knob. The DMX 221 "Selection" series is compatible with the SMART Digital range of accessories. Operating mode: Manual
Technical data
| Part number | 99205993 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5712608670398 |
| Nominal flow rate at 50 Hz | 27 l/h |
| Valve ball | ceramic |
| Maximum operating pressure at 50 Hz | 12 bar |
| Media temperature range | 0 ... 40 °C |
| Rated voltage | 3 x 230/400 V |
| Gross weight | 9.55kg |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
