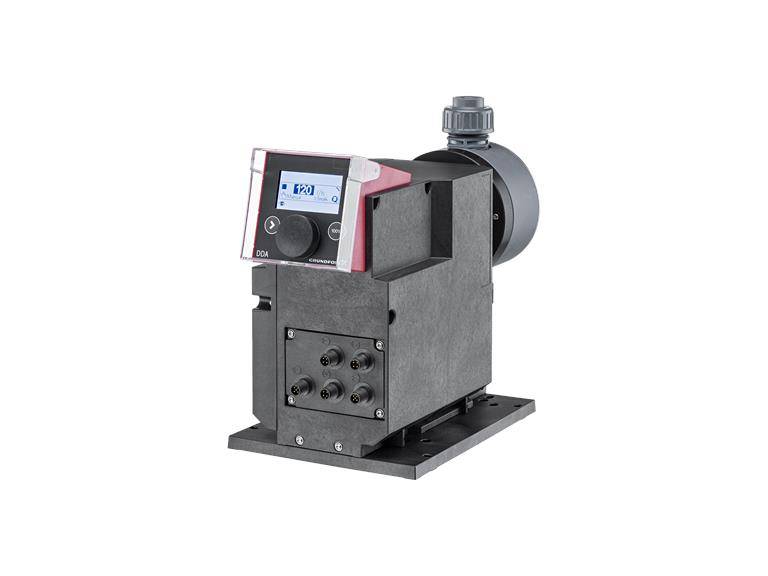

Image for illustration purposes only.
Grundfos DDA 60-10 AR-PV/E/C-F-31U3FG Metering pump
Part number
99159372
- Part number
- 99159372
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5712607841607
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
The SMART Digital DDA is a compact positive displacement diaphragm metering pump with variable speed drive (ECM motor) and an adjustment range of up to 1: 800. The SMART Digital dosing pump series always operates at full stroke length to ensure optimum accuracy and optimal filling of the dosing head, even with outgassing media. The duration of each pressure stroke varies according to the set dosing quantity, resulting in low-pulsation and quasi-continuous dosing operation. The click-on mounting
Technical data
| Part number | 99159372 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5712607841607 |
| Dosing head | PVDF |
| Seal | EPDM |
| Valve ball | ceramic |
| Max. flow rate | 60 l/h Max. flow rate: 60 l/h |
| Media temperature range | 0..50 °C |
| Rated voltage | 1 x 100-240 V |
| Type of protection | IP65 / NEMA 4X |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
