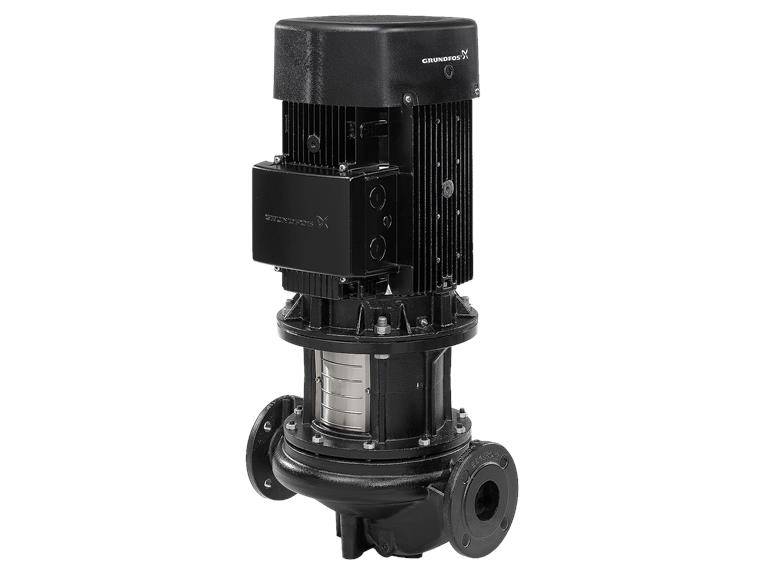

Image for illustration purposes only.
Grundfos TP 150-110/4 A-F-A-BAQE-MX3 Single-stage glanded double pumps
Part number
98908281
- Part number
- 98908281
- Brand
- Grundfos
- Product family
- Pumps
- Product line
- Product ID: 5712603382579
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Single stage spiral pump with opposite suction and discharge ports in inline design. The suction and discharge ports have the same diameter. The pumps are designed according to the top pull-out principle, i.e. the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump casing remains in the piping. The pump is equipped with an unbalanced rubber bellows seal. The mechanical seal complies with EN 12756. Piping connection via DIN flanges PN 16 a
Technical data
| Part number | 98908281 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| Product line | Product ID: 5712603382579 |
| Nominal flow rate | 224 m³/h |
| Nominal head | 9.52 m |
| Ambient temperature | -20 ... 55 °C |
| Max. Max. operating pressure | 16 bar |
| Rated current | 25/14.3 A |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
