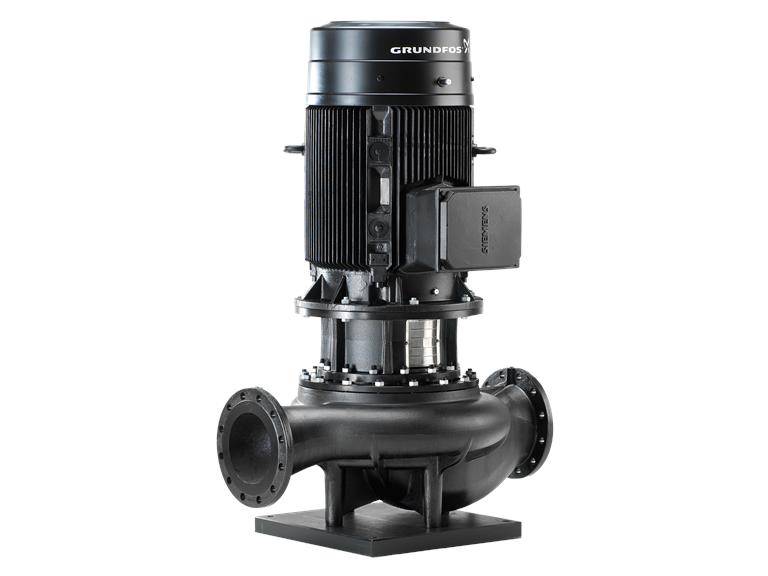

Image for illustration purposes only.
Grundfos TP 100-310/2 A-F-A-BQQE-OX1 Single-stage glanded double pumps
Part number
98858396
- Part number
- 98858396
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5712602492880
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Single-stage volute pump with opposing suction and discharge ports in in-line design. The suction and discharge nozzles have the same diameter. The pumps are designed according to the top-pull-out principle, i.e. the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump casing remains in the piping. The pump is equipped with an unbalanced rubber bellows seal. The mechanical seal complies with EN 12756. Pipe connection via DIN flanges PN 16
Technical data
| Part number | 98858396 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5712602492880 |
| Nominal flow rate | 149 m³/h |
| Nominal head | 26 m |
| Ambient temperature | -20 ... 55 °C |
| Max. Operating pressure | 16 bar |
| Rated current | 26.0/14.9 A |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
