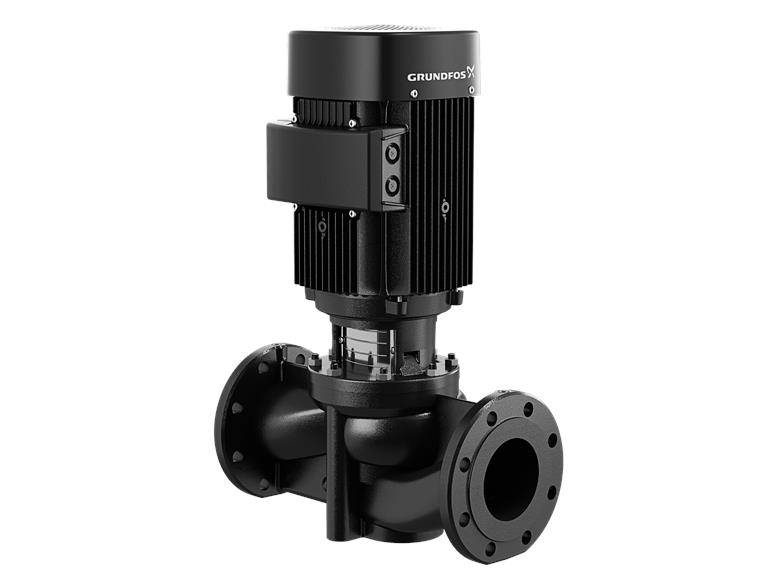

Grundfos TP 50-120/2 A-F-A-BQQE-FX1 Single stage in-line pumps
Part number
98279255
- Part number
- 98279255
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5711492356500
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Single-stage spiral pump with opposite suction and discharge nozzles in inline design. The suction and discharge ports have the same diameter. The pumps are designed according to the top pull-out principle, i.e. the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump casing remains in the piping. The pump is equipped with an unbalanced rubber bellows seal. The mechanical seal complies with EN 12756.Piping connection via DIN flanges PN 6/1
Technical data
| Part number | 98279255 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5711492356500 |
| Nominal flow rate | 17.3 m³/h |
| Nominal head | 8.1 m |
| Ambient temperature | -30 ... 60 °C |
| Max. Max. operating pressure | 10 bar |
| Rated flow rate | 3.30/1.90 A |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
