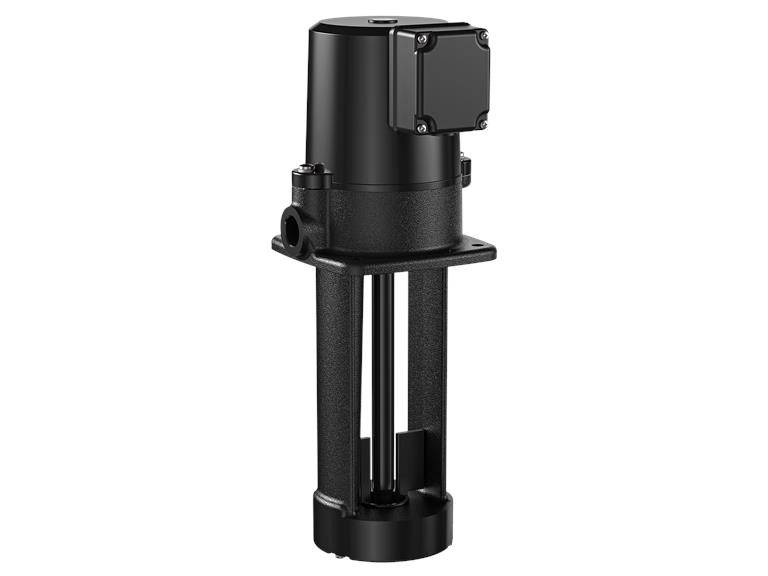

Image for illustration purposes only.
Grundfos MTA 60-180 A-W-A-B Single stage coolant pump
Part number
97989221
- Part number
- 97989221
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710627481049
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
The MTA series is a low-pressure centrifugal immersion pump. Its field of application is use as a return pump in filtering and conveying systems in machine tools. The pump has the following features: direct coupled without mechanical seal. integrated 3-phase motor. semi-open impeller to allow chips to flow through the pump. Motor and pump housing are made of grey cast iron.
Technical data
| Part number | 97989221 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710627481049 |
| EAN number | 5710627481049 |
| Nominal flow rate | 50 l/min |
| Nominal head | 5.3 m |
| Maximum ambient temperature | 40 °C |
| Media temperature range | 0 ... 60 °C |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 220-240 D / 380-415 Y V |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
