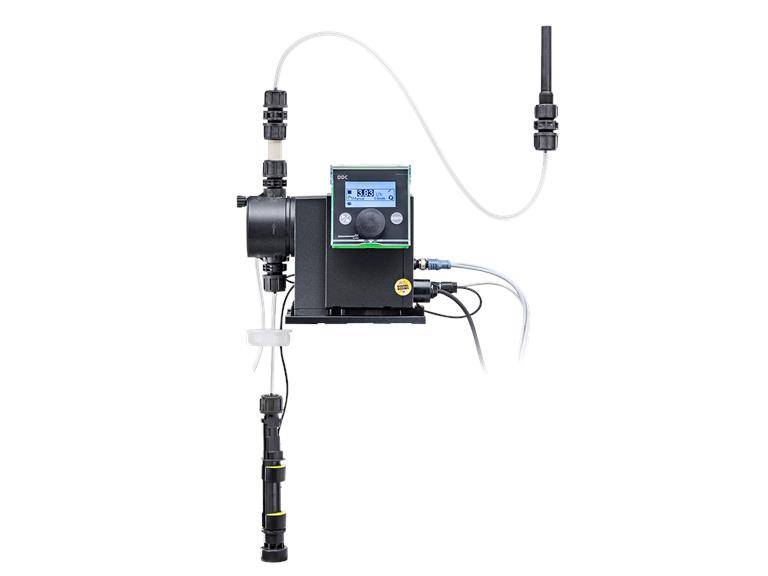

Grundfos DDC 15-4 AR-PVC/V/C WITH ACCES metering pump
Part number
97974072
- Part number
- 97974072
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710627288006
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Smart Digital dosing set, consisting of dosing pump and installation set. The SMART Digital DDC is a compact diaphragm metering pump with speed-controlled stepper motor drive and intelligent control electronics. Thanks to the stepper motor, Smart Digital dosing pumps always work with the full stroke length for optimum dosing accuracy. The stepper motor drive enables low-pulsation and continuous dosing, even at low dosing volume flows. The flexible mounting plate allows wall and floor mounting wi
Technical data
| Part number | 97974072 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710627288006 |
| Material dosing head | PVC (polyvinyl chloride) |
| Seal | FKM |
| Valve ball | ceramic |
| Max. flow rate | 15 l/h Max. volume flow: 15 l/h |
| Media temperature range | -10 ... 45 °C |
| Rated voltage | 1 x 100-240 V |
| Protection class (according to IEC 34-5) | IP65 / NEMA 4X |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
