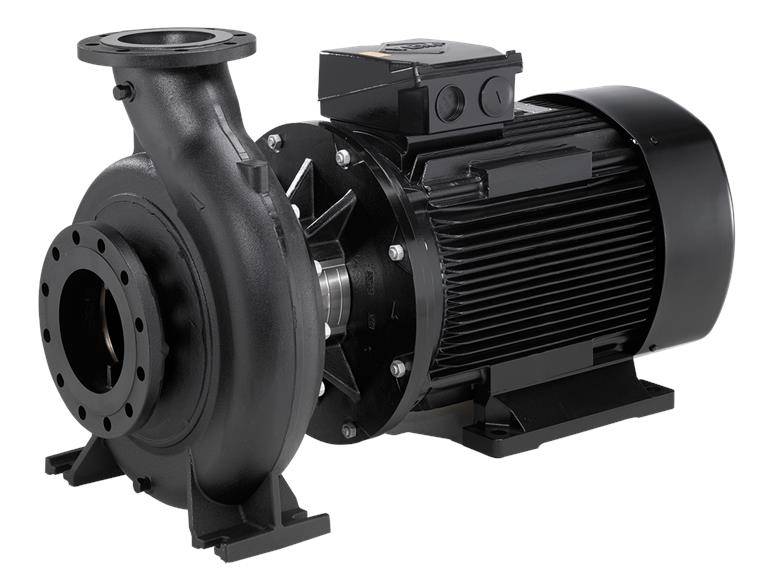

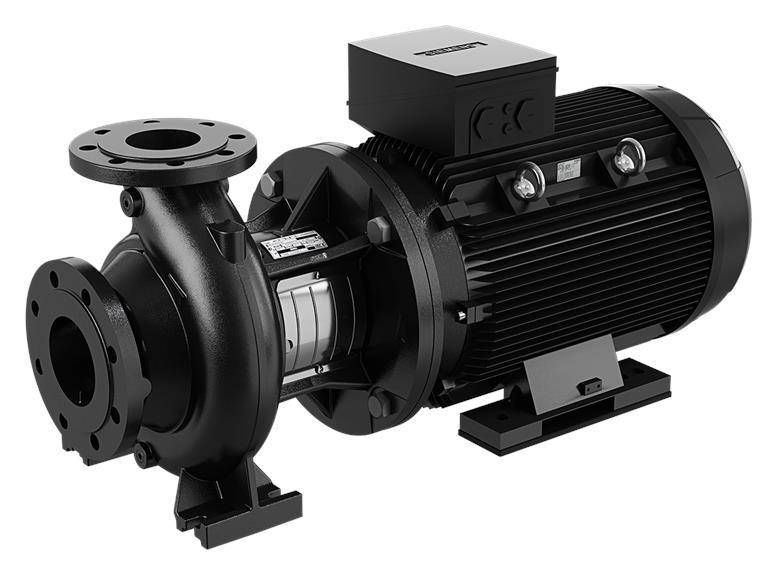

Image for illustration purposes only.
Grundfos NB 40-315/273 AAF2AESBAQEQW1 Single stage close coupled pumps
Part number
97839265
- Part number
- 97839265
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710625514268
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Normal suction, single-stage centrifugal pump according to ISO 5199 with dimensions and rated capacity according to EN 733 (10 bar). The pump is equipped with PN 16 flanges. The dimensions comply with EN 1092-2. The pump has an axial suction port and radial discharge port as well as a horizontally arranged shaft. The process design allows the motor, motor lantern, cover and impeller to be dismantled without having to separate the pump casing from the piping. The non-relieved rubber bellows seal
Technical data
| Part number | 97839265 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710625514268 |
| Nominal flow rate | 35.6 m³/h |
| Nominal head | 77.82 m |
| Max. operating pressure | 16 bar |
| Media temperature range | -25 ... 120 °C Max. operating pressure: 16 bar |
| Media temperature range | 0 ... 120 °C |
| Shaft diameter | 32 mm |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
