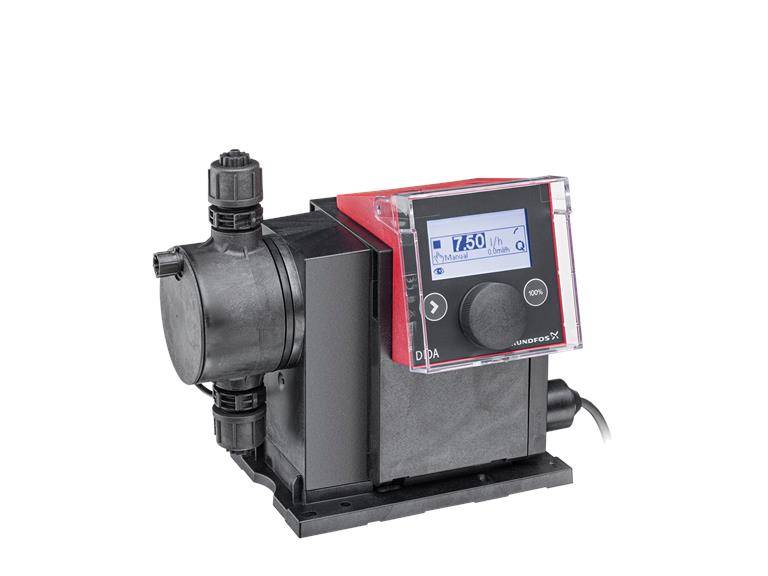

Grundfos DDA 30-4 FCM-PV/E/C-F-32U7U7BG SMART Digital Diaphragm metering pump
Part number
97722754
- Part number
- 97722754
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710622729474
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
SMART Digital diaphragm metering pump with stepper motor drive for low-pulsation and continuous metering. Ideal for complex dosing tasks thanks to integrated dosing monitoring and volume flow measurement. SMART Digital DDA is a compact diaphragm metering pump with speed-controlled stepper motor drive and intelligent control electronics. Thanks to the stepper motor, SMART Digital dosing pumps always work with the full stroke length for optimum dosing accuracy. The stepper motor drive enables low-
Technical data
| Part number | 97722754 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710622729474 |
| Max. Volume flow (l/h) | 30 |
| Max. Operating pressure (bar) | 4 |
| Material dosing head | PVDF (polyvinylidene fluoride) |
| Valve ball | Ceramic |
| Media temperature range | -10 ... 45 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
