Image for illustration purposes only.

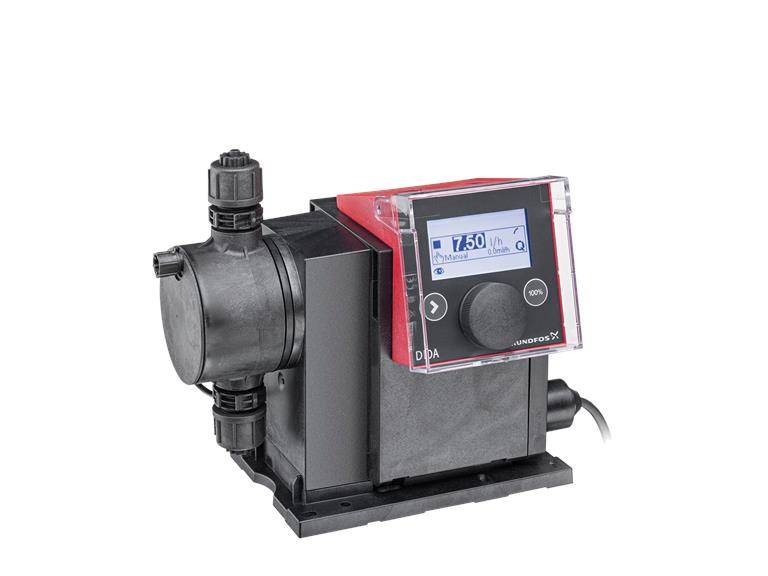

Grundfos DDA 17-7 FC-PP/V/C-F-32I002FG SMART Digital Diaphragm metering pump
Part number
97722183
- Part number
- 97722183
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710622723267
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
SMART Digital diaphragm metering pump with stepper motor drive for low-pulsation and continuous metering. Ideal for complex dosing tasks thanks to integrated dosing monitoring and volume flow measurement. Smart Digital dosing set, consisting of dosing pump and installation set SMART Digital DDA is a compact diaphragm dosing pump with speed-controlled stepper motor drive and intelligent control electronics. Thanks to the stepper motor, SMART Digital dosing pumps always work with the full stroke l
Technical data
| Part number | 97722183 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710622723267 |
| Max. Max. flow rate (l/h) | 17 |
| Max. operating pressure (bar) | 4 Operating pressure (bar): 7 |
| Material dosing head | PP (polypropylene) |
| Valve ball | Ceramic |
| Media temperature range | -10 ... 45 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
