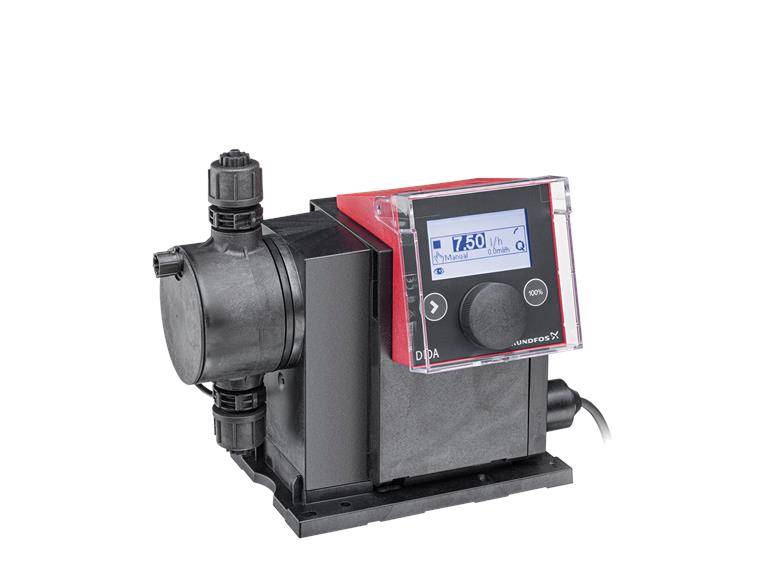

Image for illustration purposes only.
Grundfos DDA 17-7 AR-PV/T/C-F-31U2U2FG Metering pump
Part number
97722170
- Part number
- 97722170
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710622723120
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
The SMART Digital DDA is a compact diaphragm metering pump with speed-controlled stepper motor drive and intelligent control electronics. Thanks to the stepper motor, SmartDigital dosing pumps always work with the full stroke length for optimum dosing accuracy. The stepper motor drive enables low-pulsation and continuous dosing, even at low dosing volume flows. The flexible mounting plate allows wall and floor mounting without additional mounting accessories.
Tech. Details
Technical data
| Part number | 97722170 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710622723120 |
| Material dosing head | PVDF (polyvinylidene fluoride) |
| Seal | PTFE |
| Valve ball | Ceramic |
| Max. flow rate | 17 l/h Max. volume flow: 17 l/h |
| Media temperature range | -10 ... 45 °C |
| Rated voltage | 1 x 100-240 V |
| Protection class (according to IEC 34-5) | IP65 / NEMA 4X |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
