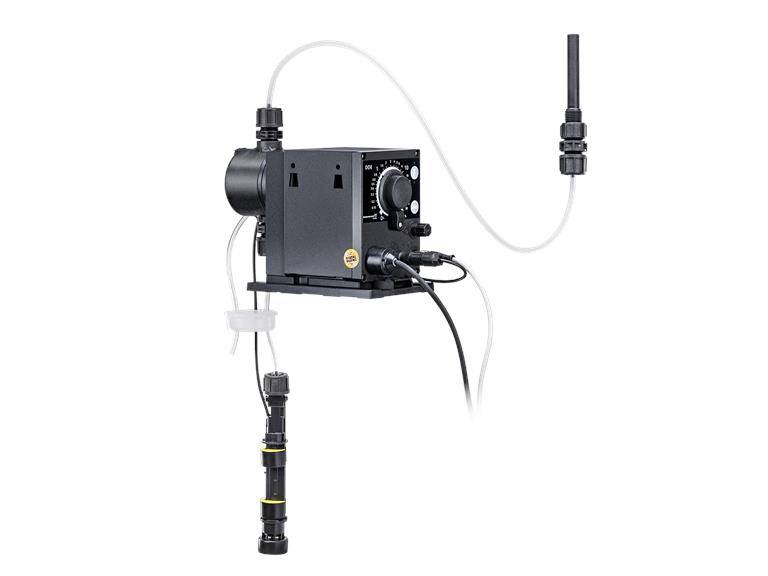

Image for illustration purposes only.
Grundfos DDE 15-4 P-PVC/T/C-X-32U2U2FG SMART Digital Diaphragm metering pump
Part number
97721035
- Part number
- 97721035
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710622711554
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
SMART Digital diaphragm metering pump with stepper motor drive for low-pulsation and continuous metering. Variant reduction thanks to stepper motor already in the ECO version. SMART Digital DDE is a compact diaphragm metering pump with speed-controlled stepper motor drive and intelligent control electronics. Thanks to the stepper motor, SMART Digital dosing pumps always work with the full stroke length for optimum dosing accuracy. The stepper motor drive enables low-pulsation and continuous dosi
Technical data
| Part number | 97721035 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710622711554 |
| Max. flow rate (l/h) | 15 |
| Max. Operating pressure (bar) | 4 |
| Material dosing head | PVC (polyvinyl chloride) |
| Valve ball | Ceramic |
| Media temperature range | -10 ... 45 °C |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
