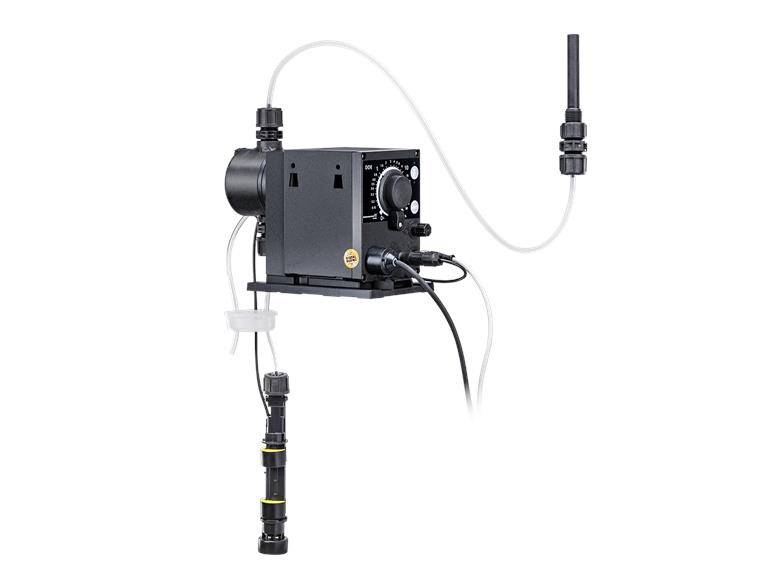

Image for illustration purposes only.
Grundfos DDE 15-4 B-PVC/V/C-X-31U2FG Metering pump
Part number
97720995
- Part number
- 97720995
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5710622711158
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
SMART Digital DDE is a compact diaphragm metering pump with speed-controlled drive (ECM motor) and a setting range of up to 1: 800. SMART Digital dosing pumps always operate with the full stroke length for optimum dosing accuracy thanks to the variable-speed drive. The ECM motor enables low-pulsation and continuous dosing even with small dosing quantities. The flexible mounting plate enables quick and easy floor mounting without additional mounting accessories. The pressure stroke speed (analogu
Technical data
| Part number | 97720995 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5710622711158 |
| Dosing head | PVC |
| Seal | FKM |
| Valve ball | ceramic |
| Max. flow rate | 15 l/h |
| Media temperature range | -10..45 °C |
| Rated voltage | x 100 V Max. flow rate: 15 l/h |
| Media temperature range | -10..45 °C |
| Rated voltage | 1 x 100-240 V |
| Type of protection | IP65 / NEMA 4X |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
