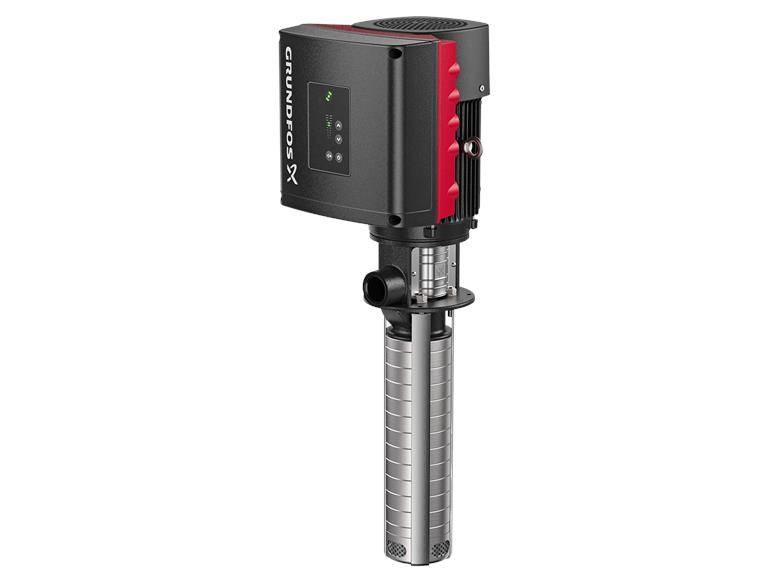

Grundfos MTRE 15-17/17 A-W-A-HUUV Cooling lubricant pump
Part number
96520415
- Part number
- 96520415
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5700396817798
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Multi-stage, submersible, self-priming centrifugal pump for vertical installation in containers, etc. The pump's wetted parts are made of grey cast iron (head and foot piece) and stainless steel. The cartridge seal promises high reliability and ease of service. The pump is equipped with a 1-phase, fan-cooled permanent magnet synchronous motor. For speed control, the motor has a frequency converter and PI controller housed in the motor's terminal box. The electronic speed control enables continuo
Technical data
| Part number | 96520415 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5700396817798 |
| EAN number | 5700396817798 |
| Nominal head | 193.1 m |
| Maximum ambient temperature | 40 °C |
| Media temperature range | -10 ... 90 °C |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-480 V |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
