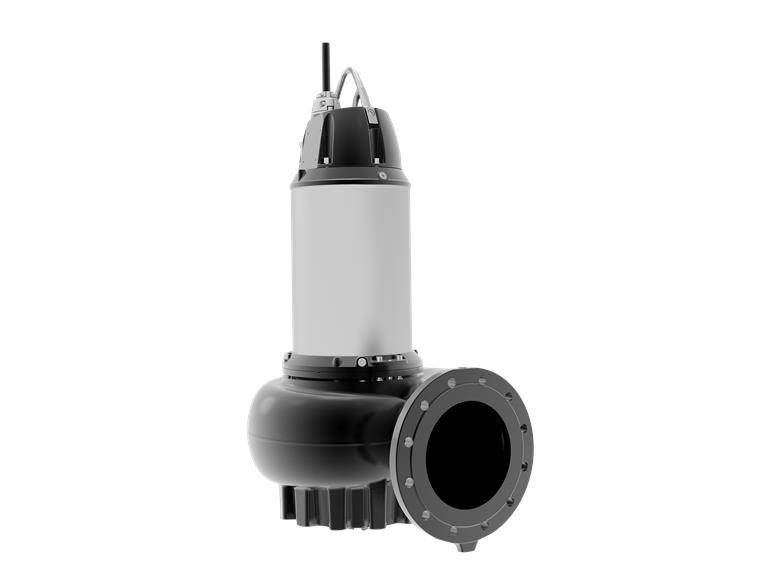

Image for illustration purposes only.
Grundfos SE1.50.80.40.2.51D.B wastewater pump
Part number
96047997
- Part number
- 96047997
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5700395061550
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Sewage pumps (1.1 to 11 kW) with S-tube impeller (SE1) or SuperVortex vortex impeller (SEV). Depending on the size, the free passage is 50 to 100 mm. Non-self-priming, single-stage submersible pump for pumping sewage, service water and untreated raw sewage. The pump is suitable for both intermittent and continuous operation. Thanks to the maintenance-free cooling system, which does not require any cooling liquid, it is equally suitable for wet and dry installation. With S-tube? impeller with a f
Technical data
| Part number | 96047997 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5700395061550 |
| Max. delivery head | 26.9 m |
| Max. operating pressure | 6 bar |
| Media temperature range | 0 ... 40 °C Operating pressure: 6 bar |
| Media temperature range | 0 ... 40 °C |
| Starting current | 71 A |
| Rated speed | 2925 1/min |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
