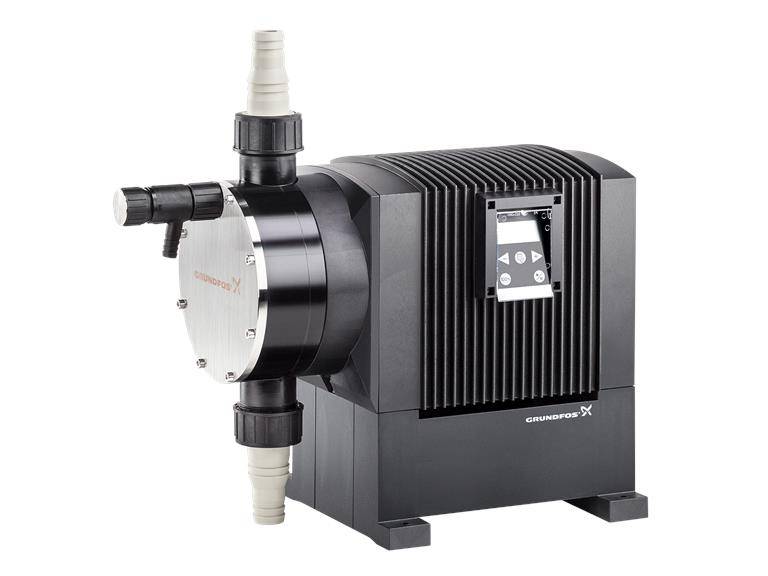

Grundfos DME 375-10 AR dosing pump
Part number
95905048
- Part number
- 95905048
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5700837545778
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Diaphragm metering pump driven by variable-speed drive motor with constant pressure stroke speed. Adjustment range of the dosing quantity 1:800. Indication and setting of the dosing quantity directly in l/h or ml/h via the display. 100% button for quick venting. Locking of the operating keys via PIN code. Simple calibration via internal calibration program. Limitation of the max. dosing quantity. Internal counting function for operating hours, number of strokes, total dosing quantity and on/off
Technical data
| Part number | 95905048 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5700837545778 |
| Pump housing | PVDF |
| Seal | PTFE |
| Valve ball | ceramic |
| Max. stroke rate | 160 rpm max. stroke rate: 160 1/min |
| max. capacity | 375 l/h |
| Rated voltage | 1 x 100-240 V |
| Check valve | SPRING LOADED |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
