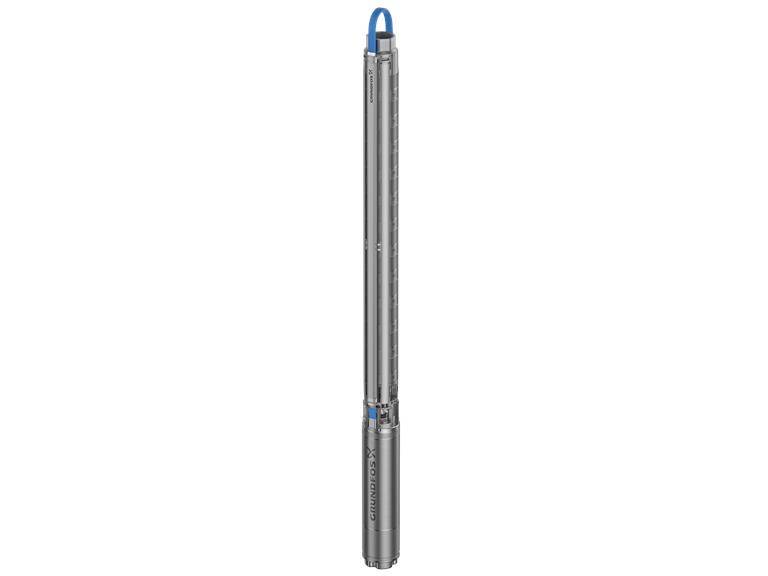

Image for illustration purposes only.
Grundfos SP 30-8N Submersible pump in stainless steel
Part number
13CA1908
- Part number
- 13CA1908
- Brand
- Grundfos
- Product family
- Pumps
- EAN / GTIN
- 5700391450815
- Price and delivery time on request
- No registration needed
- +39 080 536 7090
Description
Stainless steel submersible pumps for installation in 4", 6", 8" and 10" wells for pumping groundwater with motor powers from 0.37 to 250 kW. Submersible pump for pumping clean water. For vertical or horizontal installation, e.g. in wells. All steel parts are made of corrosion resistant stainless steel 1.4401 (AISI 316). The pump is equipped with a 7.5 kW MS4000 motor with sand deflector, mechanical seal, water lubricated bearing journals and volume compensating diaphragm. Robust, efficiency-opt
Technical data
| Part number | 13CA1908 |
|---|---|
| Brand | Grundfos |
| Product family | Pumps |
| EAN / GTIN | 5700391450815 |
| Nominal flow rate | 30 m³/h |
| Rated current | 18.4-18.8-19.6 A |
| Max. media temperature | 40 °C Max. media temperature: 40 °C |
| Nominal head | 61 m |
| Pump speed on which the pump data are based | 2900 1/min |
Data supplied by the manufacturer. Please check the specifications against your application before ordering.
